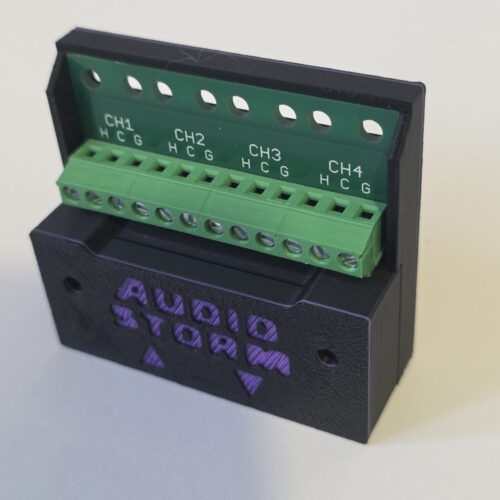

Simply screw your Ground Hot and Cold wires into the terminal block (you’ll need a 2mm flat blade micro screwdriver, not supplied) and clip the cover on for a tidy finish. If you want to mount the unit there are two 3mm through holes are provided so you can use screws or M3 bolts of your choice (not supplied) to mount the unit securely and permanently in place .
The two pairs of RJ45 sockets are each connected together internally so you can daisy chain multiple of these units to access the same four channels at multiple different locations for the easiest possible install with maximum versatility.
Use of CAT 5e/6e/7/8 STP ethernet instead of traditional multicore lets you use smaller diameter, cheaper cable for your studio build whilst retaining all the benefits of a balanced, shielded install because modern ethernet is manufacture to a very high and precise standard. Everything is assembled in house using premium fracture-resistant cobalt solder for extra long life and high reliability. These are also fully backed with our in-house warranty should anything go wrong.
Our units follow industry standard wiring practices. We recommend use of STP (shielded) ethernet cable, which is required for phantom power to be sent over the wires. UTP (unshielded) may be used for non-phantom powered installations. All cat cables are supported, 5, 5e, 6, 6A, 7. and more.
