Handy Cat DB25 to AES72-4E Adapter

Name: Handy Cat DB25 to AES72-4E Adapter
SKU: 2769
Availability: InStock

Price range: $(USD)34.00 through $(USD)254.00

The Handy Cat are our premium studio audio cabling adapters, fully custom designed and manufactured in-house by hand to the highest quality

Each unit connects a balanced 8 channel DB25 (Tascam pinout) to dual RJ45 ethernet audio (AES72-4E) or vice versa. Phantom power is supported but you must use STP screened cable to enable this. We follow industry standard connection schema throughout.

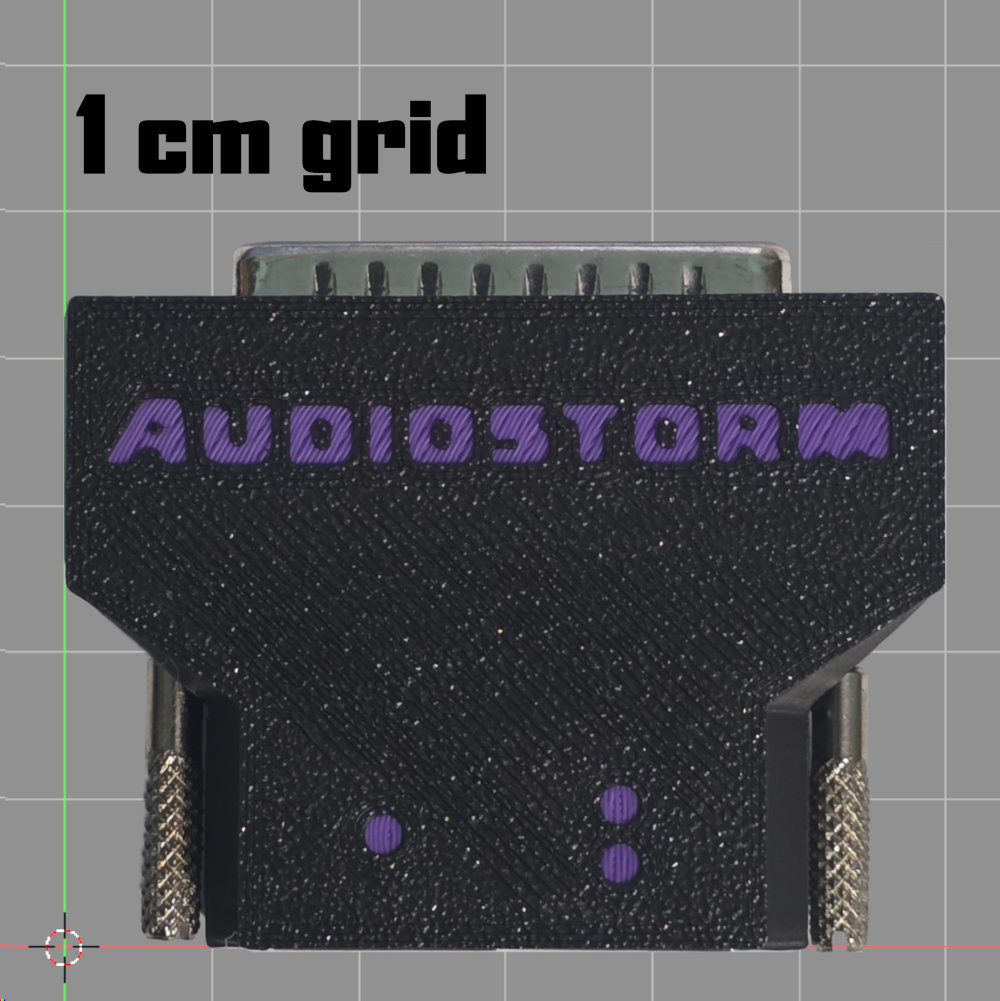

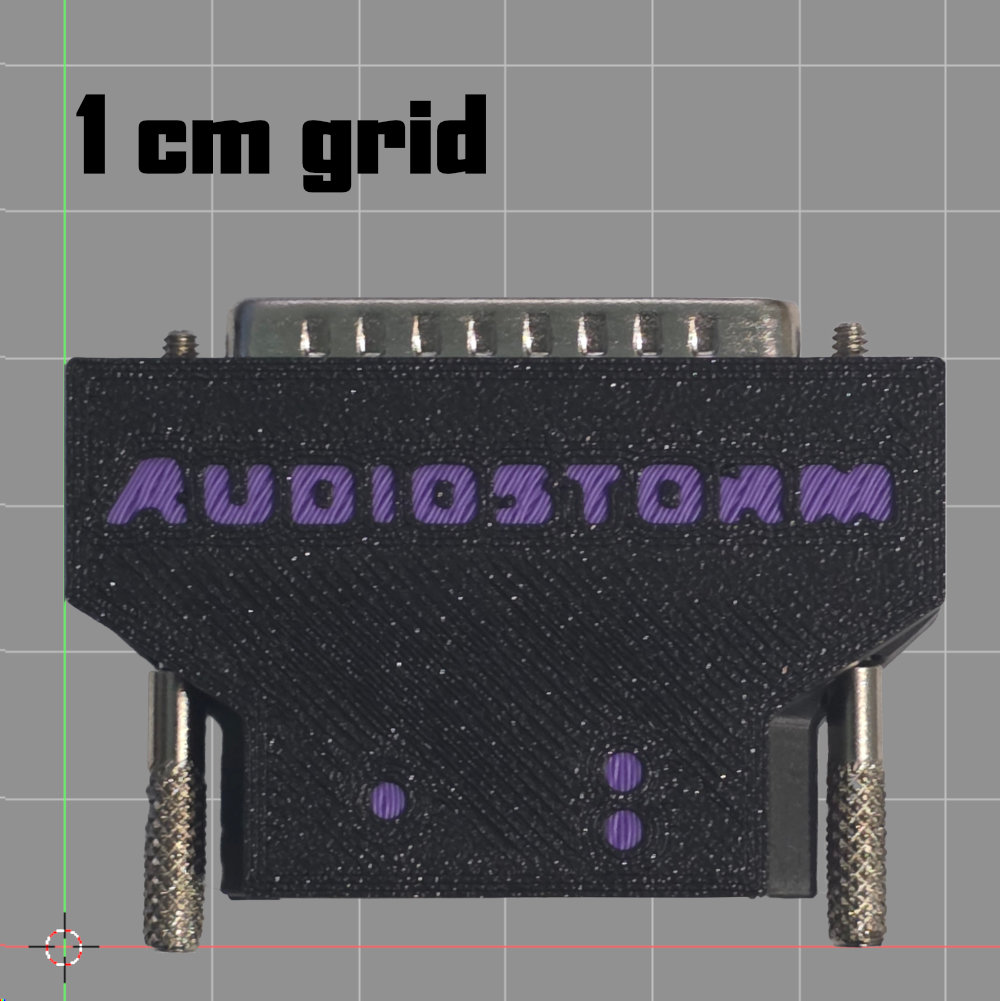

We manufacture two versions. The standard version is ideal for most uses. For 1U racks where the DB25 are vertically very close together you should purchase ‘Standard’ for the bottom and ‘Offset/Top’ for the top row. This solves the problem of RJ45 sockets being taller than DB25. These are also available in kits with 4 of each.

PLEASE NOTE! Due to high popularity there is currently a 3 week queue for these. Your purchase will be manufactured as fast as possible, please be patient, thank you.

Pack Size

Clear

Our world-leading Handy Cat design converts DB25 (Tascam pinout) to dual ethernet audio (AES72-4E) or vice versa. Use of CAT 5e/6e/7/8 STP ethernet instead of traditional multicore lets you use smaller diameter, cheaper cable for your studio build whilst retaining all the benefits of a balanced, shielded install because modern ethernet is manufacture to a very high and precise standard.

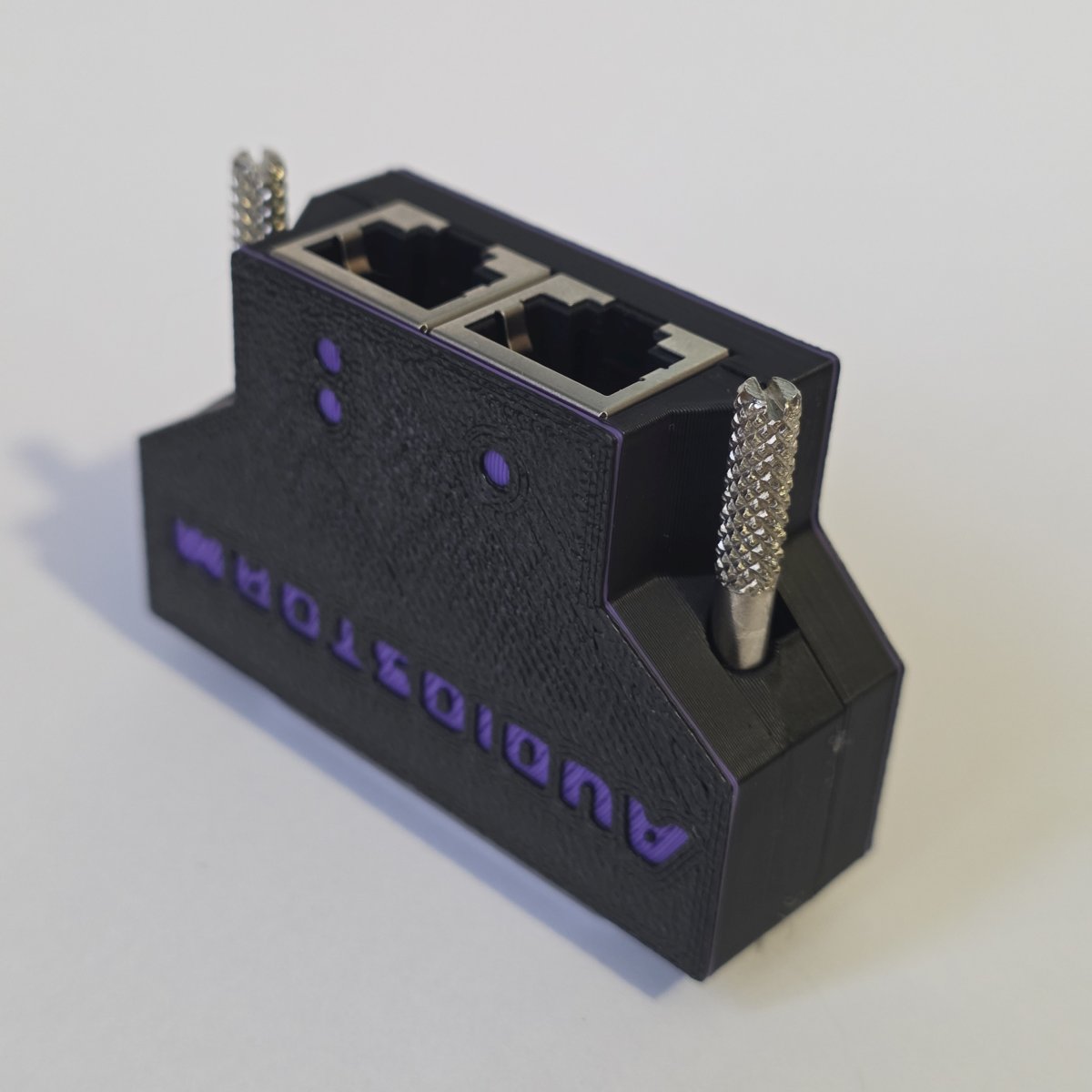

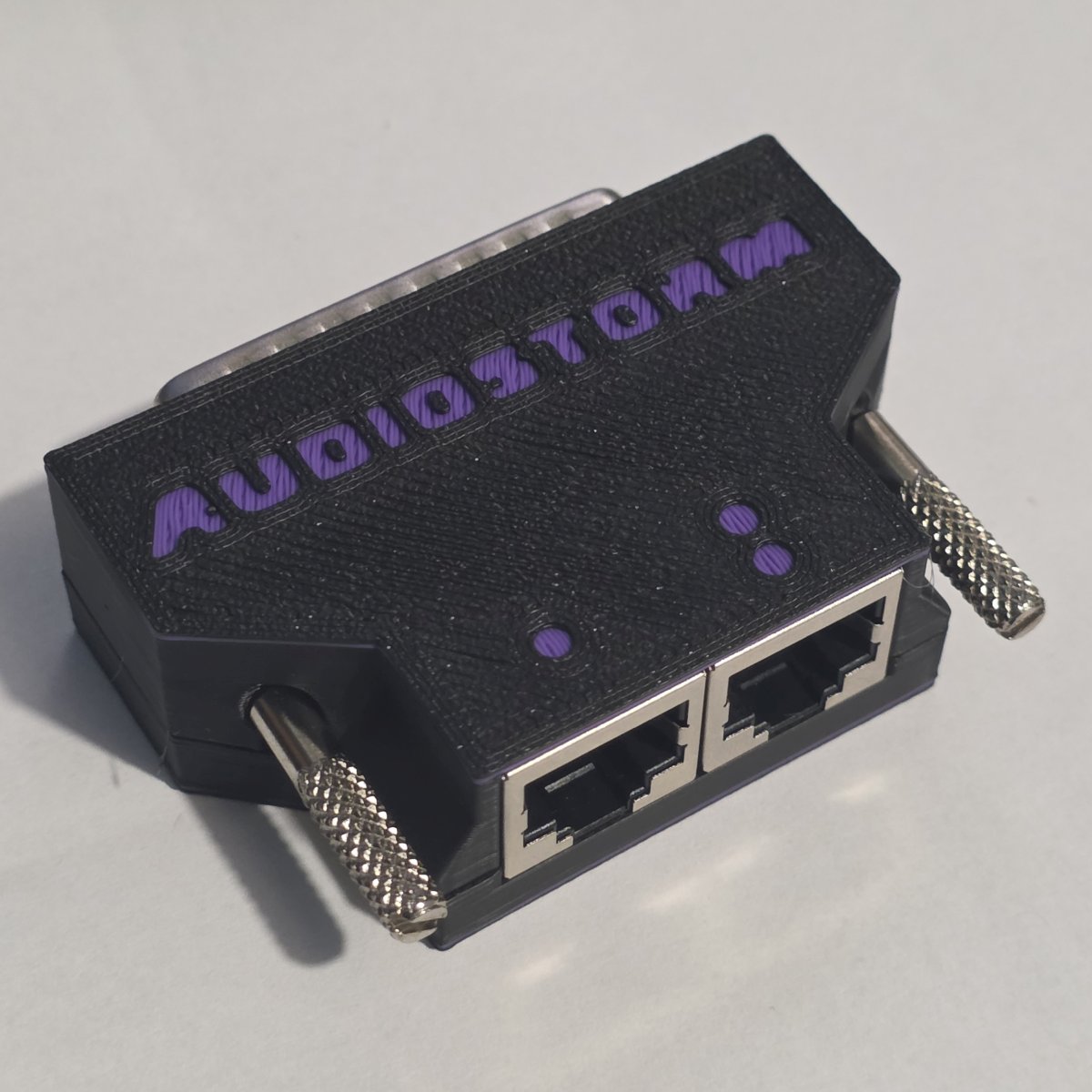

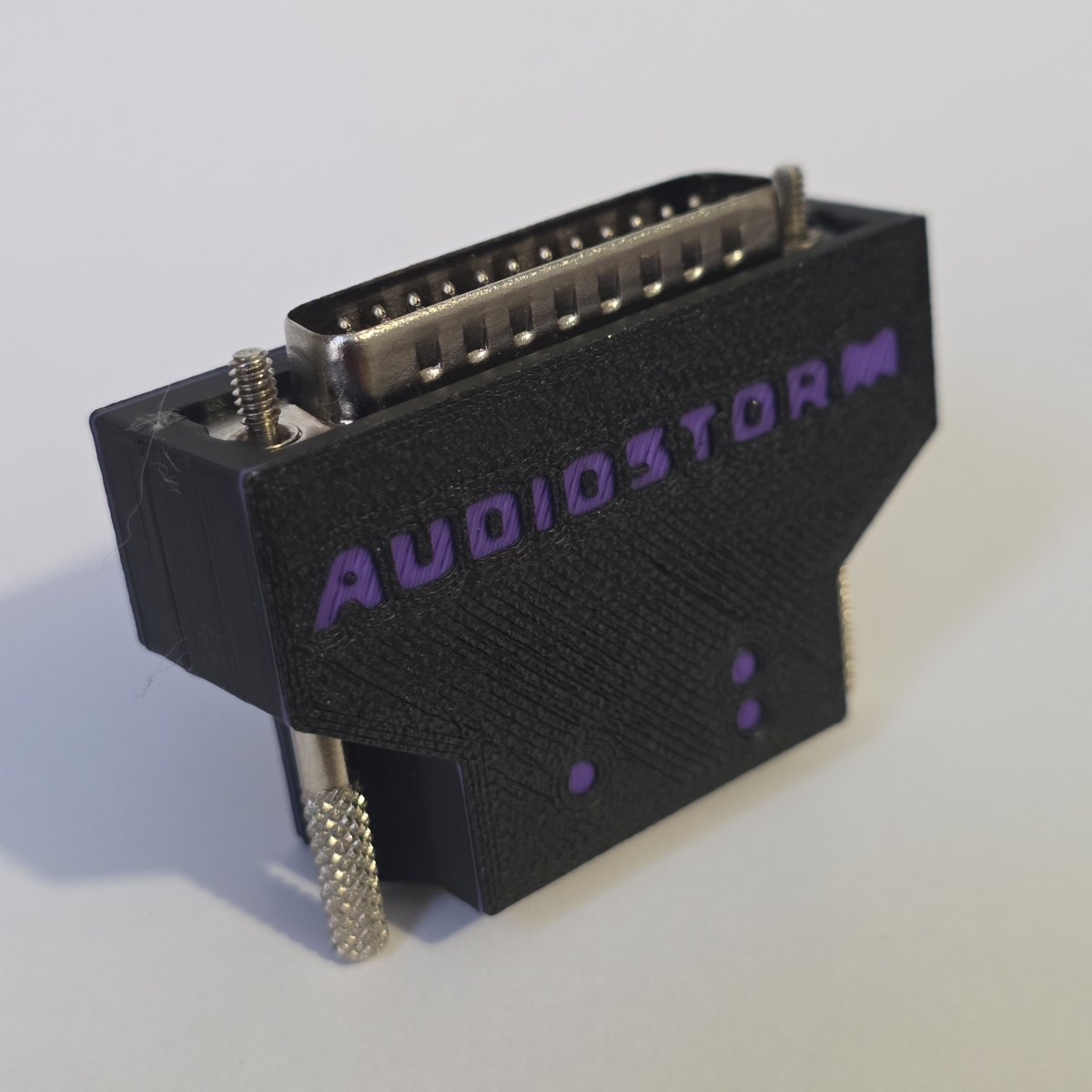

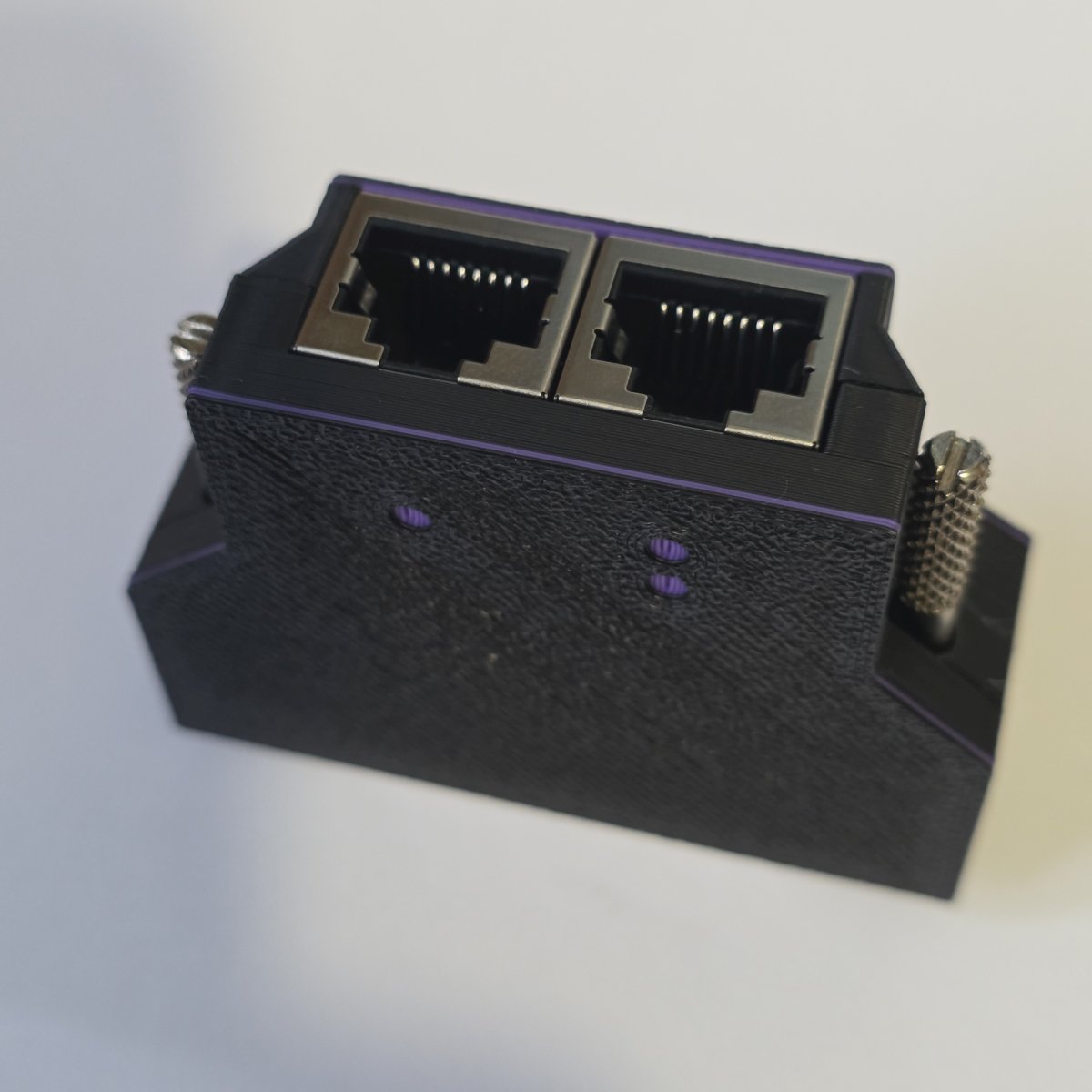

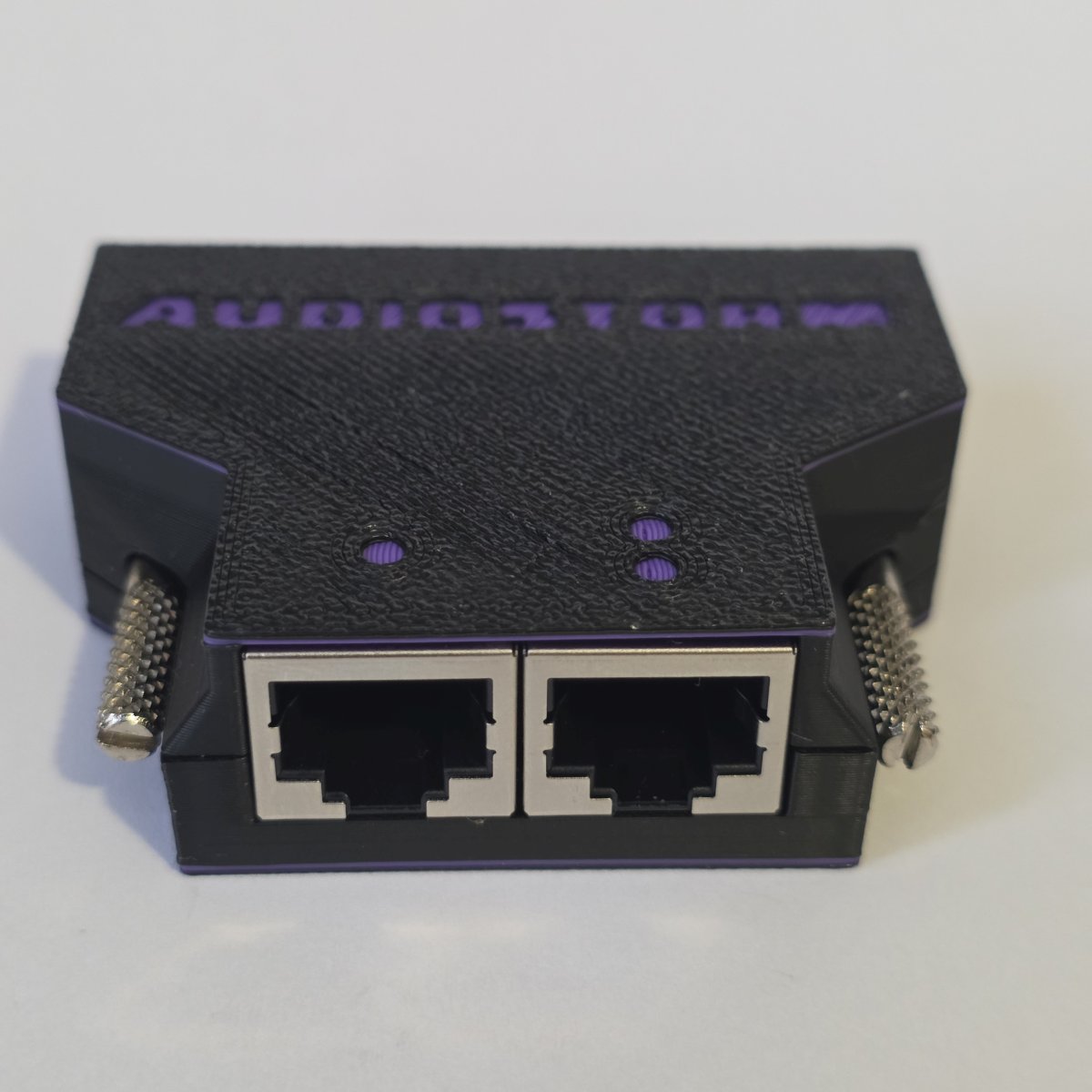

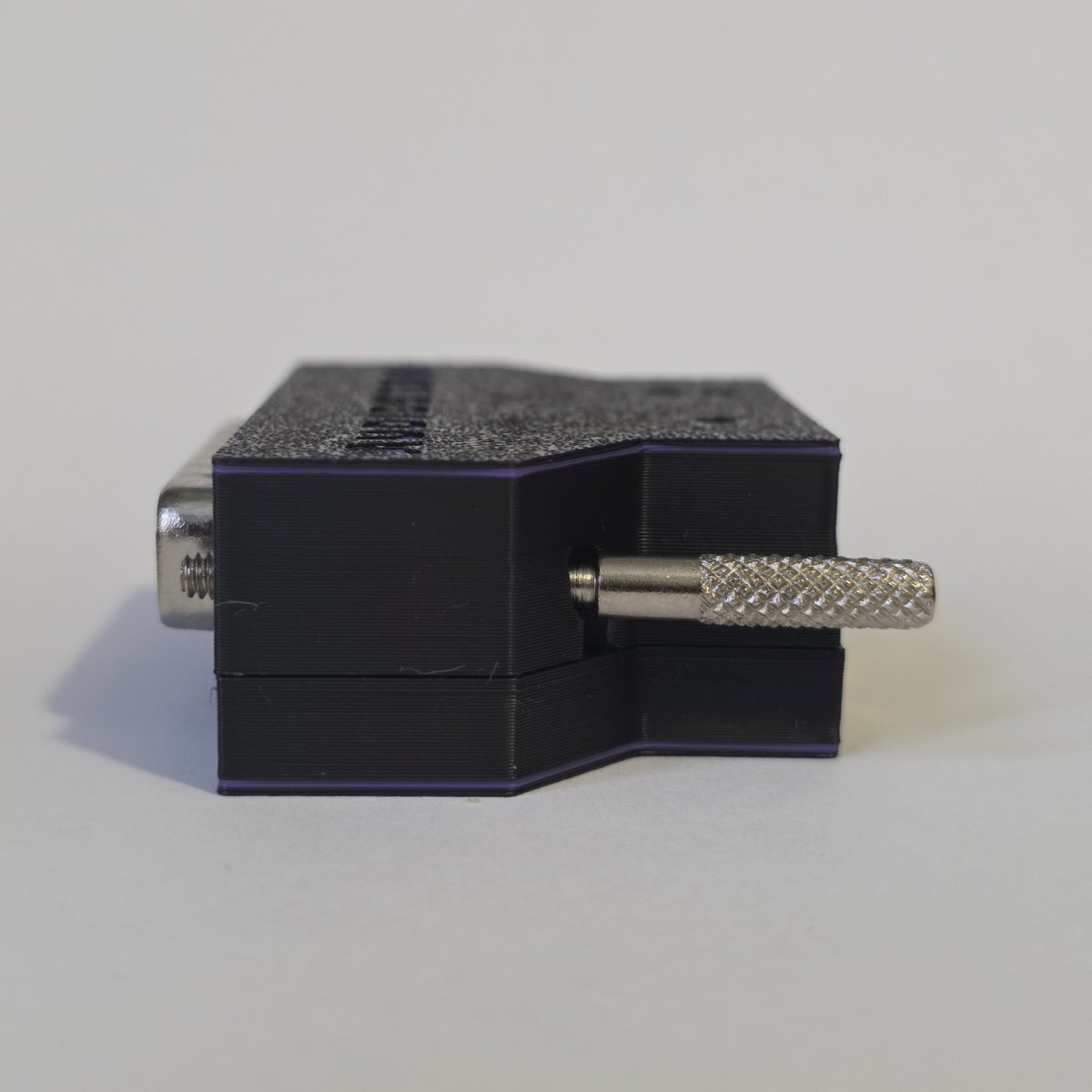

The Handy Cat uses traditional #4-40 thumbscrews that suit most converters, custom fibreglass PCBs, shielded RJ45 sockets and our own custom designed 3D printed enclosures. Everything is assembled in house using premium fracture-resistant cobalt solder for extra long life and high reliability.

Our units follow industry standard wiring practices. We recommend use of STP (shielded) ethernet cable, which is required for phantom power to be sent over the wires. UTP (unshielded) may be used for non-phantom powered installations. All cat cables are supported, 5, 5e, 6, 6A, 7. and more.

We include a detailed, full pin-out connection sheet for the units and cables with every purchase so you have the necessary reference to make your own cables or alter or modify the units at your own discretion, because we know that longevity is important. These are also fully backed with our in-house warranty should anything go wrong.

Standard T568B wiring refernce

White-Orange
Orange
White-Green
Blue
White-Blue
Green
White-Brown
Brown

(T568A swaps orange and green wiring pairs around and is electrically identical)

Additional information

Pack Size	Single Standard (Bottom), Single Offset (Top), Quad Pack Standard (Bottom), Quad Pack Offset (Top), Rack Pack (4 Bottom & 4 Top)
